pharmaceutical physical equipment

Understanding the physical properties of pharmaceutical solid materials is key to successful drug product and process development. These physical properties can have an impact on the material's bulk properties, product performance, processability, stability and product appearance.

pharmaceutical physical equipment

Disintegration tester with two stations.

The DT2 is a very easy-to-use and flexible disintegration tester with reliable temperature control. Record and report disintegration times individually per sample or as a completed set. Two stations that can be controlled, started, and stopped individually allow to perform 2 tests independently

Manufacturer: SOTAX
Model:DT2

Model specifications:

Stations: 2 independent stations

Baskets: (Apparatus A / B),6-tube basket, 10 mesh, manual,3-tube basket, 10 mesh, manual

Strokes per minute: 30

Stroke height: Height 55 mm

Temperature Range: 25 - 40 ^oC, programmable

Temperature control: Dual control, built-in sensor / external sensor.

Measuring accuracy : ± 0.2 ^oC

Bath capacity: 5.5 liter

Weight (without packaging) : 24 kg (53 lbs)

visit Manufacturer site

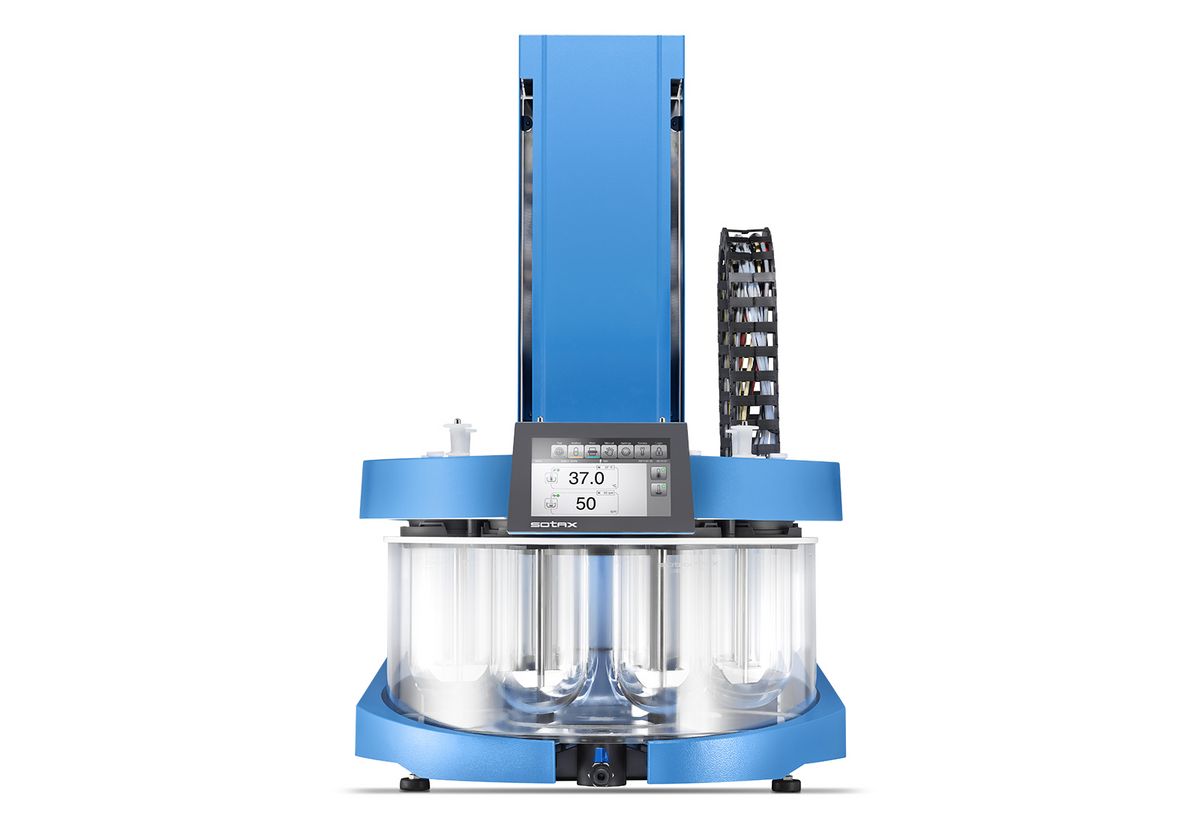

AT Dissolution Tester

the AT has been designed for the most demanding environments. Its unique design combines robust quality components with state-of-the-art technology to guarantee reproducible testing conditions, day after day. Depending on the required automation level, the AT can be flexibly extended with additional Xtend™ modules - making method transfer for increased throughput requirements easier than ever.

Manufacturer: SOTAX
Model:AT Xtend

Model specifications:

Methods: Basket, paddle, paddle over disk, rotating cylinder, extraction cell, mini paddle, China paddle, stationary basket, intrinsic and other non-compendial methods

Dosage forms: Tablets, sinkers, suspensions, transdermals, APIs, creams, gels, and more

Bath: Opening / closing: Manual or automated

Capacity: 16.5 L

Vessel: 1 L, 2 L, Mini vessel, Immersion Cell vessel, Peak vessel, China vessel

Compliance: The AT dissolution apparatus complies with all pharmacopeia requirements

Sampling: Type: Pipette, cannula, AutoLift™, HollowShaft™ (suction head)

visit Manufacturer site

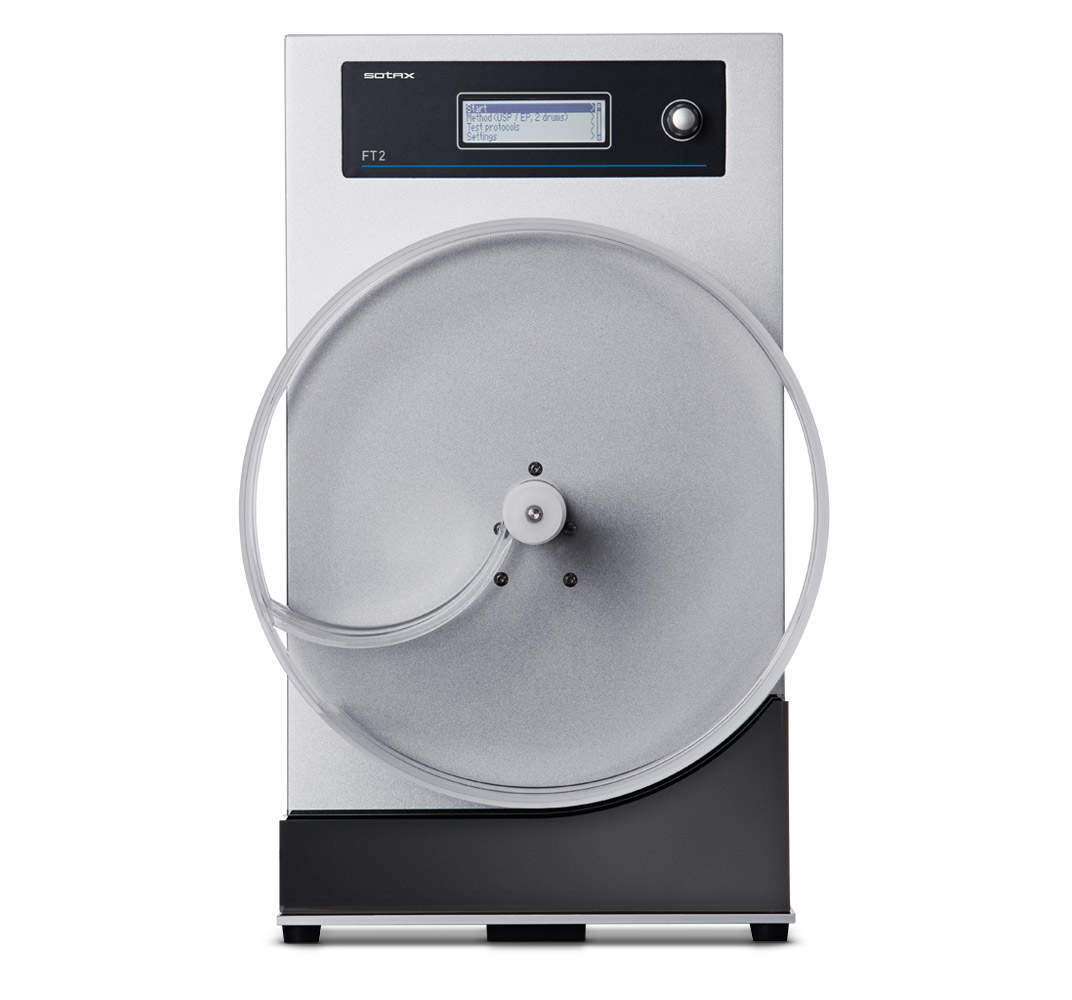

Friability Testing.

Performing and documenting friability & abrasion tests has never been faster. From SingleButton™ navigation to intergrated balance interface, single and dual drum options for increased capacity, as well as automatic calculation of percent friability for your report, and a fully menu-guided qualification procedure - the FT2 offers easy and flexible testing in your lab.

Manufacturer: SOTAX
Model:FT2

Model specifications:

Number of drums: 1 - 2

Rotation: 20 - 100 rpm, programmable.

Printer: Ethernet / RS-232 parallel

Power supply: 100 - 240 V / 50 - 60 Hz

Weight (without packaging) : 8 kg (17.7 lbs)

visit Manufacturer site

Hardness tester for all sizes and materials.

Proven to be the most advanced, precise, and user-friendly manual tablet hardness tester, the MT50 with high-precision Dr. Schleuniger® technology is an all-time favorite in both laboratories and compression rooms. Robust and very easy to use, the manual tester sets new standards in fast and precise manual operation - from multi-parameter runs to simple hardness tests of all types of samples, shapes, and materials.

Manufacturer: SOTAX
Model:MT50

Model specifications:

Weight (Mass) : External balance: Mettler Toledo®/ Sartorius®

Units of measure: mg / g

Thickness:2 - 25 mm

Repeatability :± 0.03 mm

Width / Length: (Diameter): 2 - 35 mm

Hardness: 2 - 800 N

Printer: Ethernet, USB. RS-232 serial

Weight: 10 kg (22 lbs)

visit Manufacturer site

Tapped Density Testing.

Tapped density of powders or granulates is an increased bulk density attained after mechanically tapping a cylinder containing the sample. SOTAX tapped density testers combine Method 1 and Method 2 with different stroke heights (drop) as described in United States Pharmacopeia (USP (616)) and European Pharmacopoeia (Ph. Eur. 2.9.34) in one compact unit. Comparison of the bulk and tapped densities with Compressibility Index and Hausner Ratio indicate the ability of the powder to flow and settle.

Manufacturer: SOTAX
Model:TD1

pharmaceutical physical equipment

pharmaceutical physical equipment

Disintegration tester with two stations.

Model specifications:

Stations: 2 independent stations

Baskets: (Apparatus A / B),6-tube basket, 10 mesh, manual,3-tube basket, 10 mesh, manual

Strokes per minute: 30

Stroke height: Height 55 mm

Temperature Range: 25 - 40 oC, programmable

Temperature control: Dual control, built-in sensor / external sensor.

Measuring accuracy : ± 0.2 oC

Bath capacity: 5.5 liter

Weight (without packaging) : 24 kg (53 lbs)

Details

Two independent testing stations with automated lift-in/out functions and programming.

Automatically lowers the baskets at test start and raises the baskets at test end.

Print test reports with disintegration times, statistics, and temperature protocol.

Manual recording of individual disintegration times per tablet or of a complete set.

Precise temperature control with integrated flow-through heating system.

AT Dissolution Tester

Model specifications:

Methods: Basket, paddle, paddle over disk, rotating cylinder, extraction cell, mini paddle, China paddle, stationary basket, intrinsic and other non-compendial methods

Dosage forms: Tablets, sinkers, suspensions, transdermals, APIs, creams, gels, and more

Bath: Opening / closing: Manual or automated

Capacity: 16.5 L

Vessel: 1 L, 2 L, Mini vessel, Immersion Cell vessel, Peak vessel, China vessel

Compliance: The AT dissolution apparatus complies with all pharmacopeia requirements

Sampling: Type: Pipette, cannula, AutoLift™, HollowShaft™ (suction head)

Details

CIRCULAR - Optimum water flow for temperature homogeneity and excellent observation possibilities

SAMPLING - Different sampling possibilities including AutoLift™, HollowShaft™, and stationary cannulas

FILTRATION - Maximum flexibility with tip filters, disc filters, and 25mm syringe filters

TEMPERATURE - Measure and protocol in-vessel temperatures individually with AutoLift™

VISIBILITY - Obstruction-free video monitoring with full view of individual vessels

COMPLIANT - Full compliance with all international Pharmacopeia requirements

APPARATUS - Different vessel designs and apparatus types for USP 1/2/5/6 methods and more

Friability Testing.

Model specifications:

Number of drums: 1 - 2

Rotation: 20 - 100 rpm, programmable.

Printer: Ethernet / RS-232 parallel

Power supply: 100 - 240 V / 50 - 60 Hz

Weight (without packaging) : 8 kg (17.7 lbs)

Details

Automatically record weight readings before / after test from an external analytical balance.

Calculation of percent friability / weight loss and printing of test protocols.

Flexible operation in timer, counter or speed mode and programmable rotational speed.

Integrated 10o tilting mechanism as per USP 1216.

Front-loading drums with automatic discharge function on completion of a test run.

Password protection to prevent unauthorized access to instrument settings.

Menu-guided qualification procedure with printed report.

Easy menu navigation with SingleButton™ operation.

Hardness tester for all sizes and materials.

Model specifications:

Weight (Mass) : External balance: Mettler Toledo®/ Sartorius®

Units of measure: mg / g

Thickness:2 - 25 mm

Repeatability :± 0.03 mm

Width / Length: (Diameter): 2 - 35 mm

Hardness: 2 - 800 N

Printer: Ethernet, USB. RS-232 serial

Weight: 10 kg (22 lbs)

Details

Measuring of 5 parameters: Hardness, Length / Diameter, Width, Thickness, Weight / Mass

Configurable test reports and various printer interfaces including export of test results to USB flash drive

Optimized jaw movements for highest precision and short cycle times

Compliance by design according to USP 1217 and Ph.Eur. 2.9.8 requirements

Robust Dr. Schleuniger® measuring technology

Intuitive icon-based EasyTouch™ operation

Data integrity and 21 CFR, Part 11 compliant data management with q-doc®

Tapped Density Testing.

Model specifications:

Number of stations: 1

Strokes per minute: . Method 1: 300 . Method 2 : 250

Stroke height:. Method 1 : 14 mm, ± 2 mm. Method 2: 3 mm, ± 0.2 mm

Printer :LAN printer / Epson® 40col. Ethernet / RS-232 serial

Details

Combines two test methods with different stroke heights in one compact instrument

Full compliance with USP <616> Method 1/2 and European Pharmacopoeia Ph.Eur. 2.9.24 Method 1/2

Printed test protocols that include tapped density calculations, Compressibility Index, and Hausner Ratio

Temperature Range: 25 - 40 ^oC, programmable

Measuring accuracy : ± 0.2 ^oC

Integrated 10^o tilting mechanism as per USP 1216.

Strokes per minute:
. Method 1: 300
. Method 2 : 250

Stroke height:
. Method 1 : 14 mm, ± 2 mm
. Method 2: 3 mm, ± 0.2 mm
